Changeover Switches & Fuse Switch Units

Changeover Switches & Fuse Units

High-Quality Switchgear & Protection Solutions

Product Overview

Rectiva Switch Gears manufactures high-performance changeover switches and fuse switch units designed for seamless power transition and reliable protection in electrical circuits. Engineered to ensure safety, durability, and consistent performance, these devices allow safe manual shifting between primary and backup power sources, protecting homes, businesses, and industrial installations worldwide.

Applications

Rectiva Changeover Switches and Fuse Switch Units are universally used across diverse electrical and distribution networks:

  • Residential Power Switching: Manually route switching between primary grid supply and secondary generator/inverter backup sources.
  • Industrial Control Panels: Perfect for control panels, motor control centers (MCC), and heavy machinery isolate switches.
  • Commercial Infrastructure: Used in complexes, hospitals, malls, and buildings for isolating central main lines or emergency bypass pathways.
Changeover U-Type
current

Changeover U-Type (Porcelain Base)

Premium porcelain insulation for safe domestic and commercial source transfer
Designed with a premium porcelain base, the U-Type Changeover switch offers superior heat resistance and electrical insulation. It is ideal for residential and light commercial applications requiring reliable source-change operations. Housed in a corrosion-proof sheet steel enclosure, it is available in Double Pole (D.P) and Four Pole (F.P) configurations.
Changeover U-Type

Technical Specifications

CAT NO. AMPS VOLTS POLE TYPE Package (Per Case)
RECUT 101 32 240 D.P Porcelain (U-Type) 20 Pcs.
RECUT 102 32 415 F.P Porcelain (U-Type) 8 Pcs.
RECUT 103 63 240 D.P Porcelain (U-Type) 6 Pcs.
RECUT 104 63 415 F.P Porcelain (U-Type) 3 Pcs.
RECUT 105 100 415 F.P Porcelain (U-Type) 3 Pcs.
RECUT 106 200 415 F.P Porcelain (U-Type) 1 Pc.

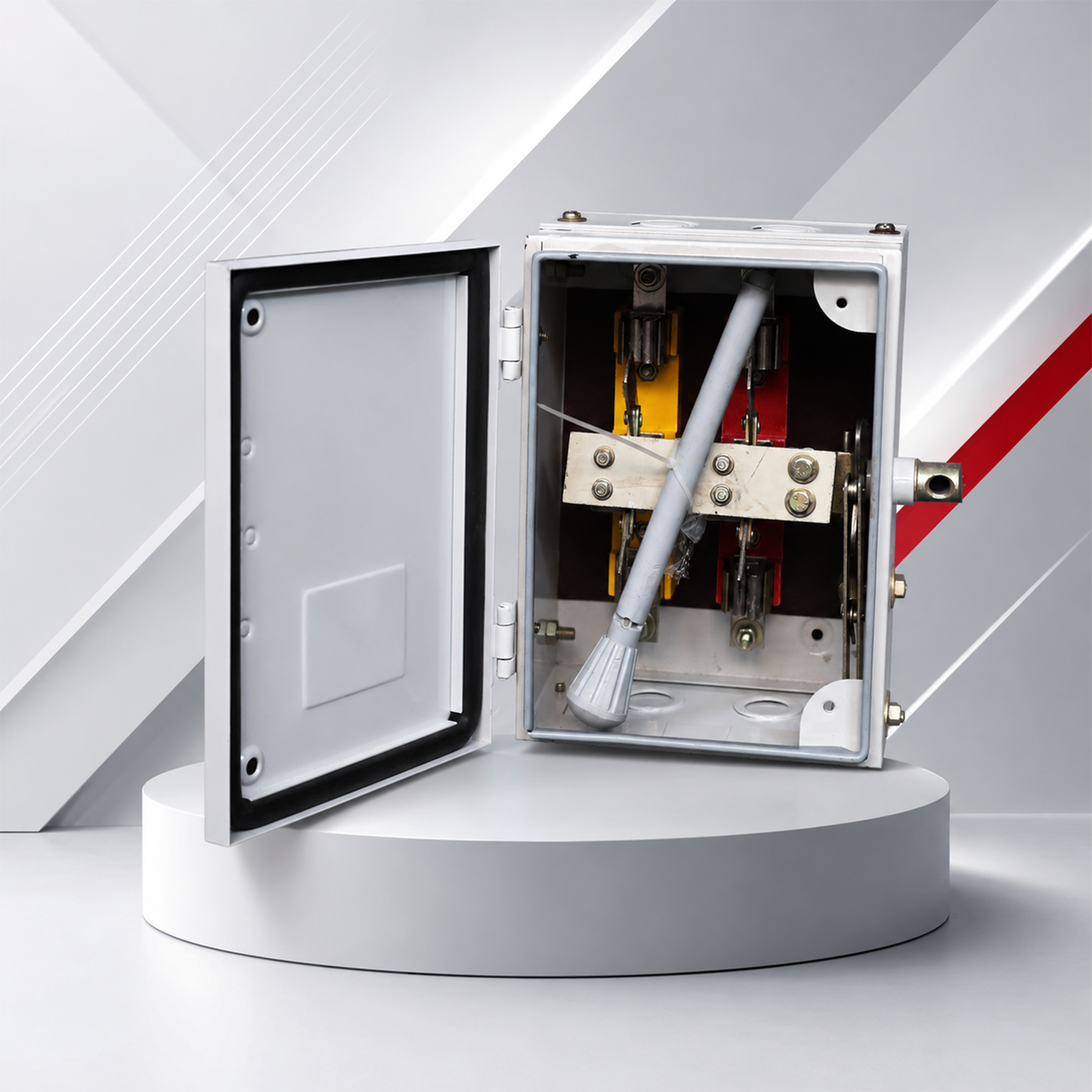

Changeover Knife-Type
current

Change Over Knife-Type

Heavy-duty copper contact manual transfer switches for industrial power distribution
Our heavy-duty Knife-Type changeovers are constructed using highly conductive copper contacts and thick insulating substrates. Built for high-load industrial operations, it features a heavy-duty transition handle for fast, arcless manual changeover switching. Ranges from 32A to 630A for high-power industrial requirements.
Change Over Knife-Type

Technical Specifications

CAT NO. AMPS VOLTS POLE TYPE Package (Per Case)
RECKT 111 32 240 D.P Knife Type 8 Pcs.
RECKT 112 32 415 F.P Knife Type 8 Pcs.
RECKT 113 63 240 D.P Knife Type 4 Pcs.
RECKT 114 63 415 F.P Knife Type 4 Pcs.
RECKT 115 100 415 F.P Knife Type 3 Pcs.
RECKT 116 100 415 F.P Knife Type HEAVY 3 Pcs.
RECKT 117 200 415 F.P Knife Type 1 Pc.
RECKT 118 320 415 F.P Knife Type 1 Pc.
RECKT 119 400 415 F.P Knife Type 1 Pc.
RECKT 120 630 415 F.P Knife Type 1 Pc.
Fuse Switch Unit U-Type
current

Fuse Switch Unit U-Type (Main Switch)

Compact circuit isolation with integrated porcelain fuse carriers
Our U-Type Fuse Switch Units integrate load-break switching and fuse protection into a single, compact device. Acting as a main switch, it provides robust circuit isolation and immediate fuse disconnection during overload or short-circuit faults. Fitted with porcelain fuse carriers.
Fuse Switch Unit U-Type (Main Switch)

Technical Specifications

CAT NO. AMPS VOLTS POLE TYPE Package (Per Case)
REFSU 131 32 240 D.P Main Switch 20 Pcs.
REFSU 132 32 415 T.P Main Switch 8 Pcs.
REFSU 133 32 415 T.P&N Main Switch 8 Pcs.
REFSU 134 63 240 D.P Main Switch 6 Pcs.
REFSU 135 63 415 T.P Main Switch 4 Pcs.
REFSU 136 63 415 T.P&N Main Switch 4 Pcs.
REFSU 137 100 415 T.P Main Switch 2 Pcs.
REFSU 138 100 415 T.P&N Main Switch 2 Pcs.
REFSU 139 200 415 T.P Main Switch 1 Pc.
REFSU 140 200 415 T.P&N Main Switch 1 Pc.

Product Features

  • Premium Materials: Constructed with high-grade porcelain, pure copper contacts, and durable sheet metal enclosures.
  • Exceptional Insulation: Excellent thermal stability and high dielectric strength to withstand fault currents.
  • Secure Operation: Powder-coated scratch-resistant boxes with secure manual handles for safe transition.
  • Long Durability: Mechanical and electrical integrity designed for thousands of switching cycles.

Why Choose Rectiva?

Rectiva switchgear offers unmatched electrical safety, durability, and user protection:

  • Legacy of Quality: Founded by Mr. Suresh Kumar Yadav, whose commitment to safety and engineering excellence drives us forward.
  • Advanced MD Leadership: Directed by Mr. Jatin Yadav, utilizing modern materials and designs to achieve zero-defect quality.
  • Rigorous Testing Standards: Tested for heat resistance, insulating capacity, and load breaking currents before shipment.
